Product name：CH-LPE8 Parallel beam sensor

Product features：THE CH-LPE8 parallel beam weighing sensor is a single-point bearing structure, the product structure is simple, easy to use, through four Angle adjustment to ensure that its output in the specified loading plane consistent.The ch-LPE8G steel parallel beam weighing sensor is protected by metal housing.Suitable for packing scale, electronic belt scale and batching scale.

Range：500N(50kg)、1 kN(100kg)、1.5 kN(150kg)、2 kN(200kg)、3 kN(300kg)、5 kN(500kg)、7 kN(700kg)、10 kN(1000kg)

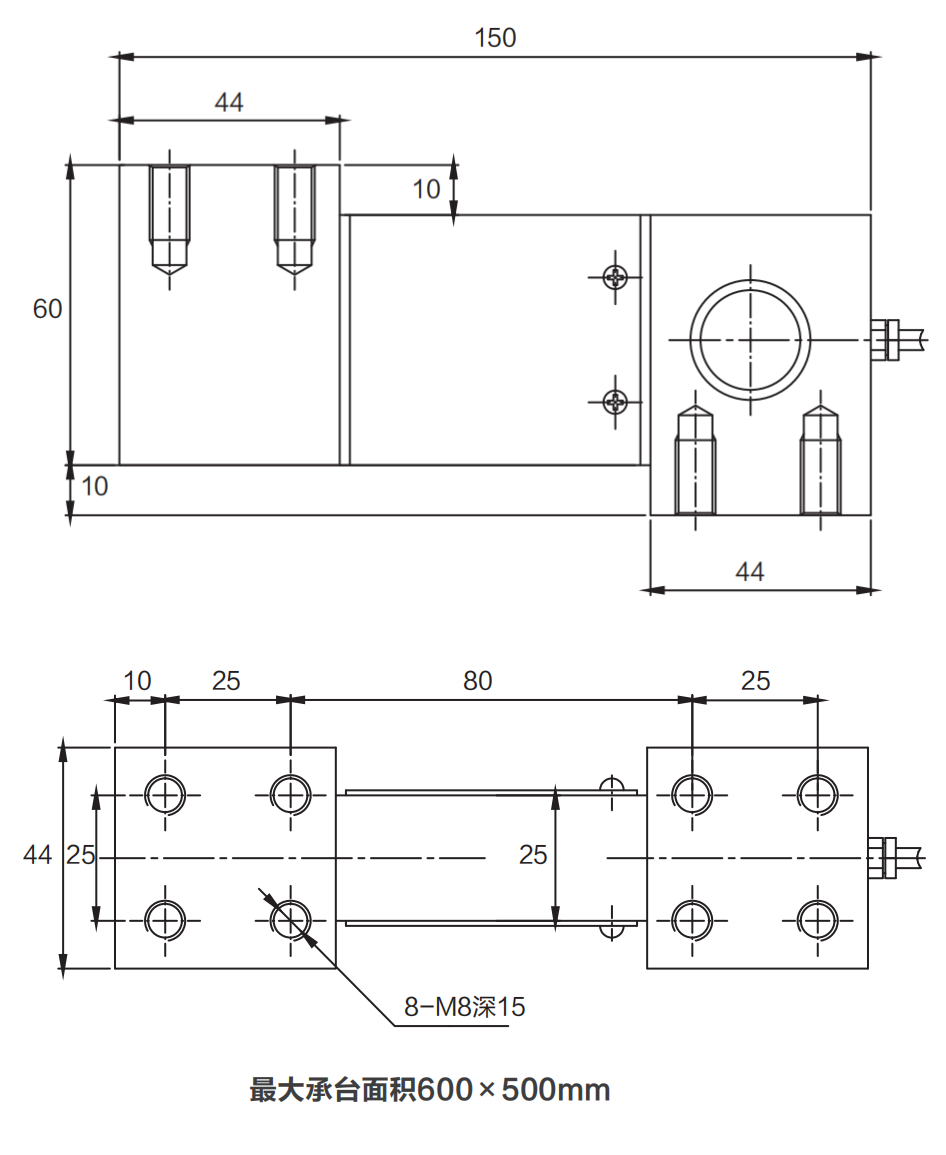

Dimensions：

Specifications：

Specifications
Rated Output	2.0mV/V±10%	Input impedance	410±15Ω
Non-linearity	±0.02%F.S	Output impedance	350±5Ω
Hysteresis	＜±0.02%F.S	Insulation resistance	≥5000MΩ
Repeatability	＜±0.02%F.S	Allow excitation voltage	5～15V/DC
Creep	＜±0.02%F.S/30min	Compensated temp. range	-10℃～+40℃
Temp. effect on zero	＜±0.02%/10℃	Operating temp. range	-30℃～+70℃
Temp. effect on span	＜±0.02%/10℃	Safe overload	150%F.S
Zero balance	＜±1%F.S	Ultimate overload	200%F.S
Connection	Excitation：+ Red - Black Shield： Thick Yellow Signal： + Green - White
