CH-XSBC Cantilever weight sensor

Features: CH-XSBC cantilever weighing sensor made of high quality alloy steel, with high precision, high stability and other characteristics, easy to install, fast, suitable for mixing station, belt scale, batching scale and platform scale, etc.

OnlineTel
156-2185-0939

Product intro

Product

Product Name：CH-XSBC 懸臂梁式稱重傳感器

Product Features：CH-XSBC懸臂梁式稱重傳感器采用優(yōu)質(zhì)合金鋼材質(zhì)，具有高精度、高穩(wěn)定性等特點，安裝簡便、快速，適用于攪拌站、皮帶秤、配料秤和平臺秤等。

Range：5kN（500kg）、10kN（1t）、20kN（2t）、30kN（3t）

Dimensions：

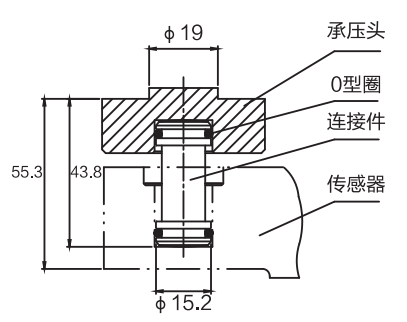

Attachment size：

Specifications：

Specifications
Rated Output	2.0mV/V±1%	Zero Balance	±1%F.S
Comprehensive Precision	0.03%F.S	Input Impedance	380±5Ω
Linearity/ Hysteresis	±0.03%F.S	Output Impedance	350±3Ω
Repeatability	±0.03%F.S	Insulation Impedance	≥5000MΩ
Creep	±0.03%F.S/30min	Recommended Excitation Voltage	5～15V/DC
Temp. Effect On Zero	±0.03%/10℃	Compensated temp. Range	-30℃～+70℃
Temp. Effect On Output	±0.03%/10℃	Safe Overload	150%F.S
Connection	Excitation：+ Red - Black Shield： Thick Yellow Signal： + Green - White
